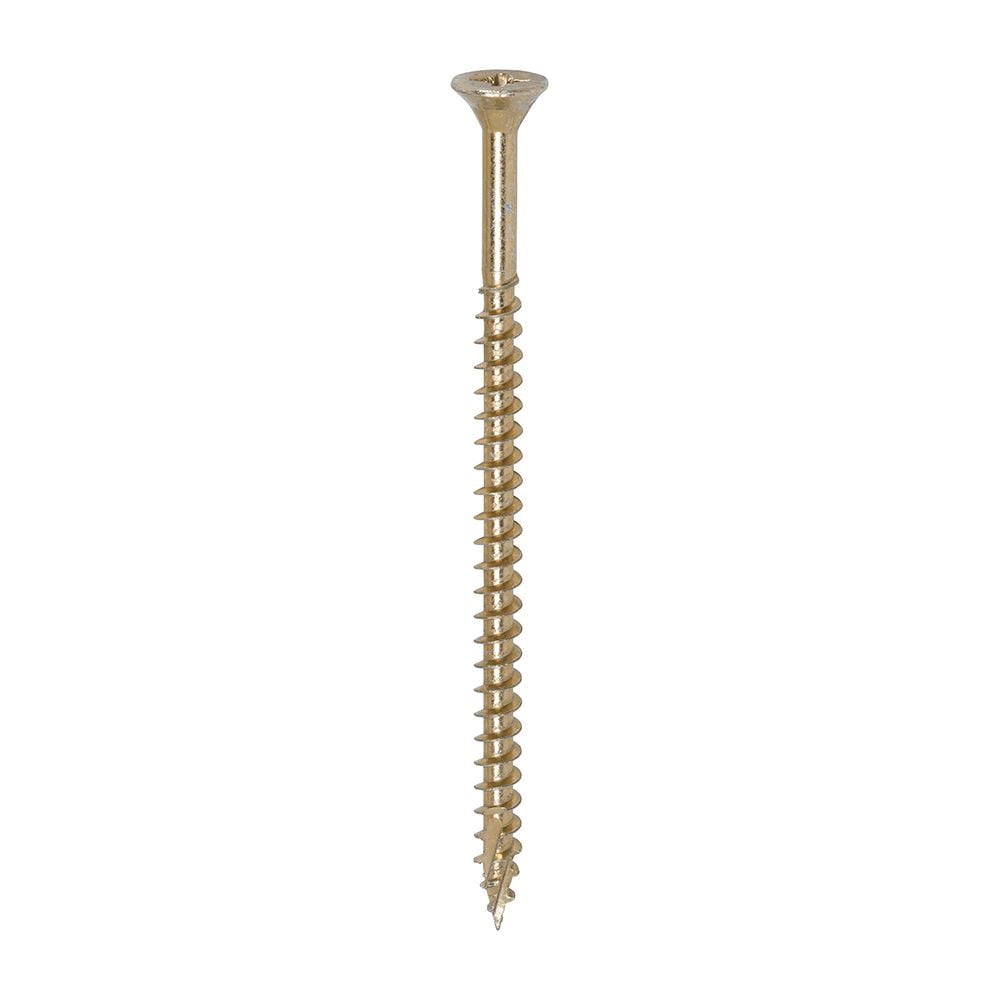

TIMco 5.0x90mm 50090C2 C2 Multi Purpose Advanced Screw PZ2 Double Countersunk - Yellow ZYP (100/Box)
In stock
Product Code
50090C2
A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle full thread design ensures maximum pull-out strength on every fixing. Ideal for applications when optimum holding force is required such as hinges, brackets and high load environments.
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
A premium multi-material screw featuring the award winning C2 twin-cut technology. The dual angle full thread design ensures maximum pull-out strength on every fixing. Ideal for applications when optimum holding force is required such as hinges, brackets and high load environments.
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Dual angle thread gives an ultimate performance and an exceptionally high pull-out resistance
• Patented twin cut technology for rapid "pick-up" and reduces timber splitting • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Coated with a high-molecular polymer lubricant that reduces the insertion torque by up to 52% and increases rust protection up to 20 times longer than a standard zinc plating
• Deep recess to prevent 'cam-out', giving a precise and positive drive control on every screw
• Ribs under head for improved countersinking and to give a smooth and flush finish, also prevents splitting and material damage
• Dual angle thread gives an ultimate performance and an exceptionally high pull-out resistance
• Patented twin cut technology for rapid "pick-up" and reduces timber splitting • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Specifications
| Head type | Double Countersunk |
|---|---|
| Size | 5.0x90mm |
| Corrosion Rating | 2 - Occasionally damp/wet, rural and sheltered areas |
| Material | carbon steel |
| Range | TIMco |
| Barcode | 5055331894304 |
| Head Type | Double Countersunk |
| Thread Type | 40° Single |
| TIMco Feature 6 | All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
| Lubrication | Gleitmo |
| Pack Type | Box |
| Substrates | Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal |
| Pack Weight | 0.76kg |
| Thread Coverage | Partially Threaded |
| Gauge | 10 |
| MOQ | 1 |
| Recess Type | Pozi |
| Corrosion Rating 1-5 | 2 - Occasionally damp/wet, rural and sheltered areas |
| Point Type | Twin Cut |
| MOQ Increment | 1 |
| Driver Bit Size | PZ2 |
| Pack Quantity | 100 |
| Range | TIMco |
| Material | Carbon Steel |
